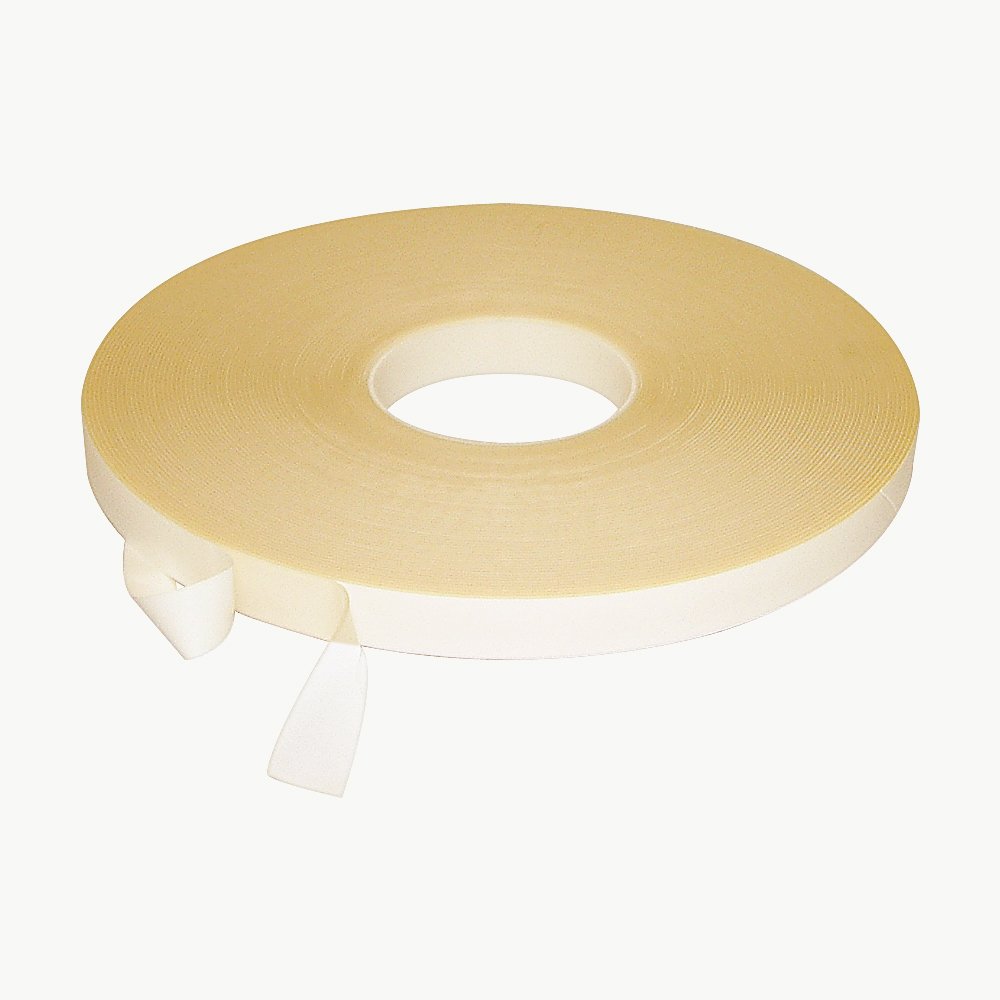

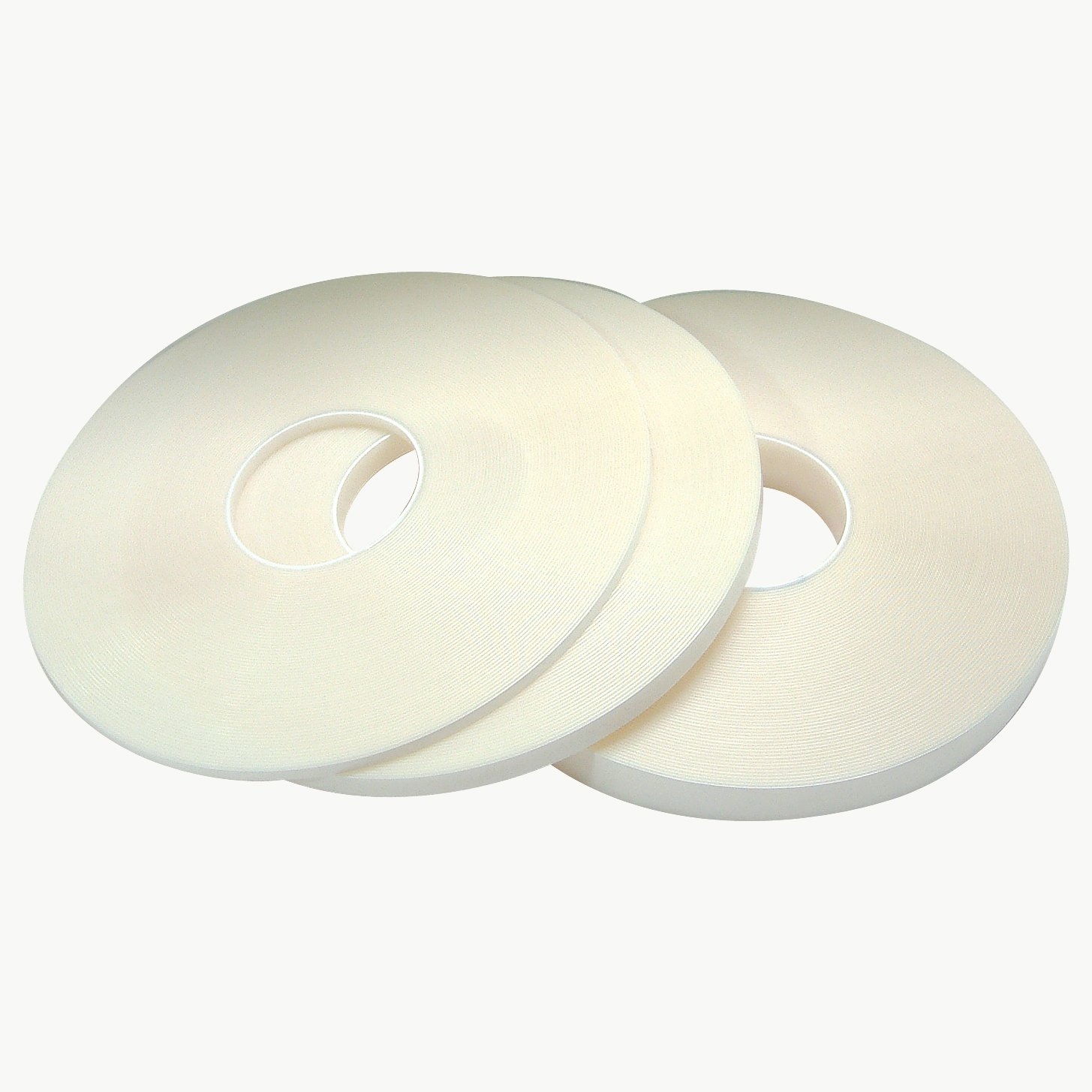

JVCC DC-UHB45 Ultra High Bond Double-Sided Tape is a 45 mil thick structural grade double-sided (AKA double-coated) tape comprised of an integral core of solid acrylic polymer, coated on both sides with a uniform high-tack acrylic adhesive, and carried on a white polyethylene release liner. It provides a superior, permanent bond between a wide variety of substrates, including glass, sealed wood, metals, painted metals, composites, and some plastics. Withstands a wide range of weathering and temperature conditions without losing adhesion. Solid acrylic core gives tape superior strength; it can be easily applied and cleanly cut, yet is flexible, moldable, compressible, and conformable to intricate shapes. The tape will bond to most surfaces, but a thorough evaluation is recommended when bonding low energy surface material such as PVC, ABS, Polyethylene (PE) and Polypropylene (PP). Not recommended for bonding Teflon, Tedlar, silicone or EPDM.JVCC DC-UHB45 is used primarily in the transportation industry, automotive, truck, trailer and bus, signs, graphic art assemblies, furniture/appliance manufacturing, and RV skin to frame assembly. Rugged metal to metal bonds to replace welding, rivets, bolts, screw, and cementing. It will maintain adhesion at sub-zero temperatures and is non-staining and will not harden or become brittle with age. It isolates and dampens vibration and shock. DC-UHB45 is approved for certain GM, Ford and Chrysler specifications. If not otherwise specified widths shown in dropdown are in inches.
JVCC DC-UHB45 Ultra High Bond Double-Sided Tape is a 45 mil thick structural grade tape comprised of an integral core of solid acrylic polymer, coated on both sides with a uniform high-tack acrylic adhesive. It provides a superior, permanent bond between a wide variety of substrates, including glass, sealed wood, metals, painted metals, composites, and some plastics.
The double-sided (AKA double-coated) tape will bond to most surfaces, but a thorough evaluation is recommended when bonding low energy surface material such as PVC, ABS, Polyethylene (PE) and Polypropylene (PP). Not recommended for bonding Teflon, Tedlar, silicone or EPDM.
JVCC DC-UHB45 is used primarily in the transportation industry, automotive, truck, trailer and bus, signs, graphic art assemblies, furniture/appliance manufacturing, and RV skin to frame assembly. Rugged metal to metal bonds to replace welding, rivets, bolts, screw, and cementing.
Carrier/Backing solid acrylic polymer. Adhesive ultra-high bond acrylic. Release Liner white polyethylene film. Thickness 52 mils (carrier, adhesive, liner) 45 mils (carrier, adhesive) 7 mils (liner).
Adhesion 240 ounces per inch (to stainless steel test panel). Tensile Strength 200 pounds per inch (longitudinal). Service/Operating Temperature -30F to 200F. Application Temperature 50F to 100F. Elongation 500%. Density 62.5 pounds per cubic foot. Dynamic Shear Strength 90 pounds per square inch. Core 3-inch diameter.
